High Temperature in Reactive Gas XRD Upgrade for Your Smartlab

Reactor X allows XRD measurements under high temperature (RT - 1000°C) in vacuum, inert gas, reactive gas, or a mixture of these. This corrosion-resistant attachment allows the use of a reactive gas environment for various in-situ measurements. Infrared heating enables rapid heating and cooling of the sample.

Specifications:

  • Controlled sample temperature range: Room temperature to 1000°C
  • Rapid ramping rate: Maximum 300°C/min
  • Atmosphere: Air, vacuum, inert gas, or reactive gas
  • Sample chamber: Separated sample chamber allowing sample preparation in a glove box
p6_reactorx_t_03

Who needs the Reactor X?

The Reactor X attachment is perfect for researchers working on in-situ studies of phase transitions and structural changes under elevated temperatures and reactive gases.

Catalysis scientists, solid-state chemists, and battery researchers will appreciate its ability to heat samples from room temperature to 1,000 °C in controlled atmospheres like hydrogen, ammonia, or humid air, all while performing in-situ XRD with rapid heating rates up to 300 °C/min. Its corrosion-resistant, separable sample chamber makes it ideal for glove‑box workflows.

By enabling real-time observation of gas-solid interactions and phase behavior under practical conditions, Reactor X significantly enhances the functionality and value of SmartLab systems. This additional capability can benefit shared facilities and service labs serving a broad user base.
Reactor-X-on-SmartLab
The Reactor X on the SmartLab
REACTOR X HIGH TEMPERATURE ATTACHMENT FOR REACTIVE GASES
The Reactor X exterior
p6_reactorx_t_03

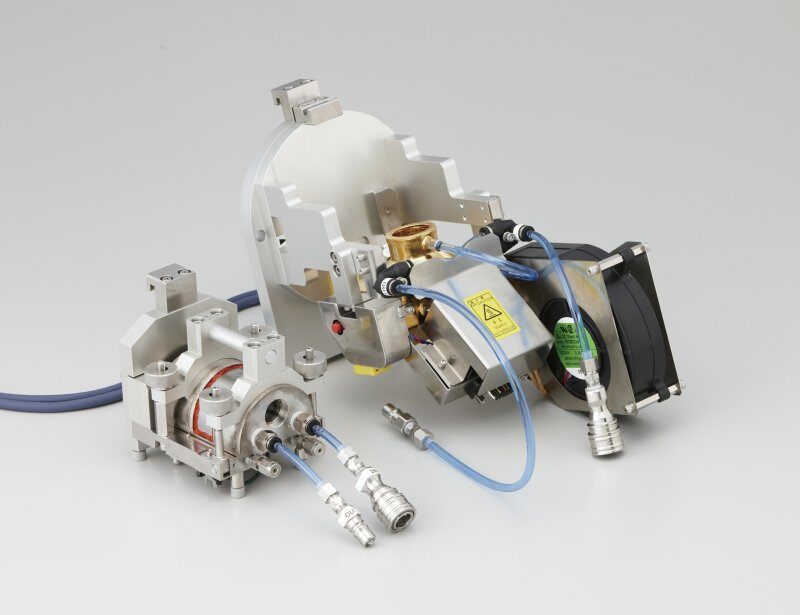

The Reactor X parts

Contact us today

Not sure if the Reactor X is the right fit for your work? No problem.

Whether you’re just curious or exploring options, we’re here to help. Our team is happy to review your application and run test scans as necessary to determine what makes sense for your lab.

Contact our Contracts Service Manager or send us your question via the form.
